9305-24i 12Gbps SAS-3 (Bro cableadcom LSI SAS3324 chip PCIe x8 HBA IT Mode ZFS TrueNAS Unraid +6PCS* SFF-8643 4*SATA 1M Cable

1* 9305-24I 6*SFF-8643 4*SATA 1M Host Bus Type x8 Lane PCI Express 3.0 Devices Supported 1024 Non-RAID SATA/SATA Devices Per Controller Internal Connectors 6 x Mini SAS HD SFF 8643 Internal Ports 24 Operating Temperature 0 C to 55 C Operating Voltage +12V +/-8%, 3.3V +/-9% OS Support Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical PCI Power Typical: 16.2W Cable Support Passive Copper, Activate Optical I/O Controller SAS 3224 Operating Humidity 5% to 90%, Non-Condensing Brackets Full Height and Low Profile Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), Canada (ICES-003, Class B, EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Korea (RRA no 2013-24 25), RoHS, Safety: EN60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE Data Transfer Rate 12Gb/s SAS-3 Compliant

• Supports X8 PCI Express 3.0 Host Interface
• Supports 24 internal 12Gb/s SATA+SAS ports
• Supports SAS link rates of 3Gb/s, 6Gb/s, and 12Gb/s
• Provide 6 x4 internal small SAS HD connectors (SFF-8643)

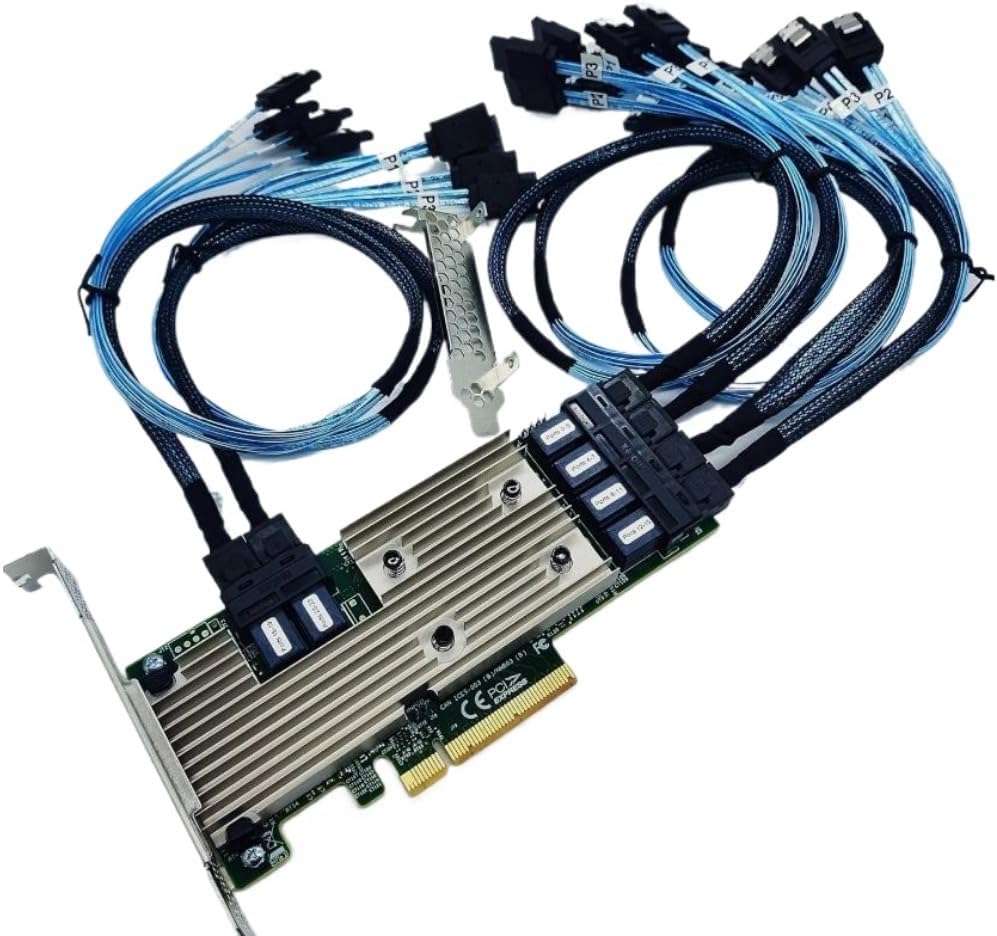

• The package includes: 9305-24i HBA card * 1, High bracket * 1,Low bracket * 1,SFF-8643 4*SATA 1M Cable * 6
