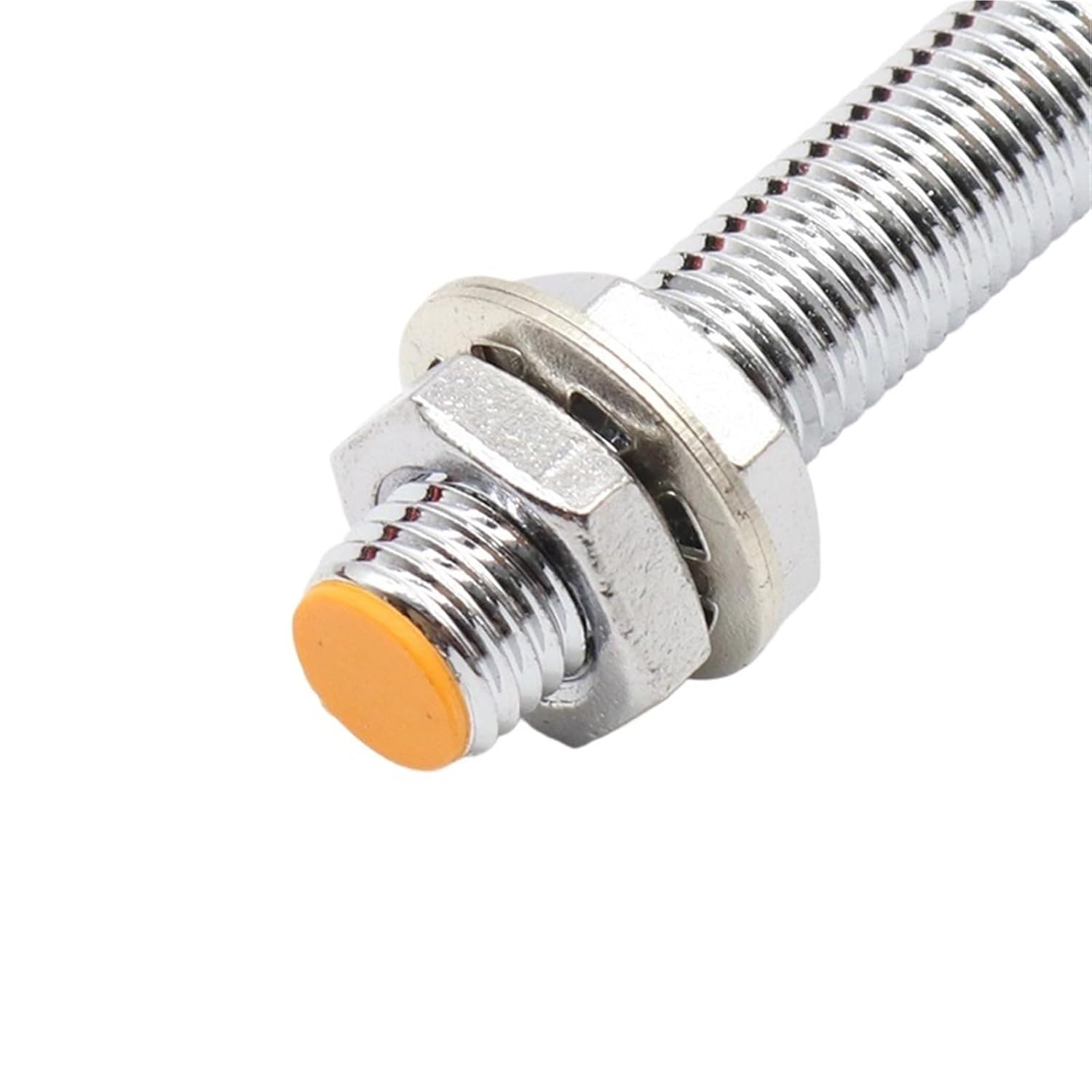

M8 LJ8A3-1-Z/BX 1mm Induction DC NPN NC Metal Sensor inductive Proximity Switch Screen Shield Type LJ8A3
4.3 (35 items)
Limited Time Sale$20.45 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221453042 | Release Date | 2026/05/03 | List Price | $13.63 | Model Number | 221453042 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Proximity SensorsModel number:LJ8A3-1 seriesExternal dimensions:M8x45Installation type: ShieldedDetection distance: 1mmSetting distance: 0-1.2 mmSupply voltage: 6-36VdcOutput current: DC type: 300mA max; AC Type: 400mAStandard detected object: Mild steel (12x12x1mm)Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)Response frequency: 500HzOutput indication: Red LEDShort-circuit protection: NOReverse connection protection: YesInsulation resistance: 50M min (between charging part and housing)Dielectric strength: 1000Vac, 1min (between charging part and housing)IP Rating: IP65Operating temperature: 25 to 70 °C (13 to 158 °F)Cable length: 1.2m, PVC cableMaterial: Case: Brass-nickel plated; Sensing surface: ABS======Material : CopperSwitch Type : Proximity SwitchModel Number : LJ8A3-1-Z/BXItem Type : SWITCHES
- Proximity Sensors
- M8 LJ8A3-1-Z/BX 1mm induction DC NPN NC metal sensor inductive proximity switch Screen shield type LJ8A3
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | TIRJXPWUL |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
Teenagers
Inductive
