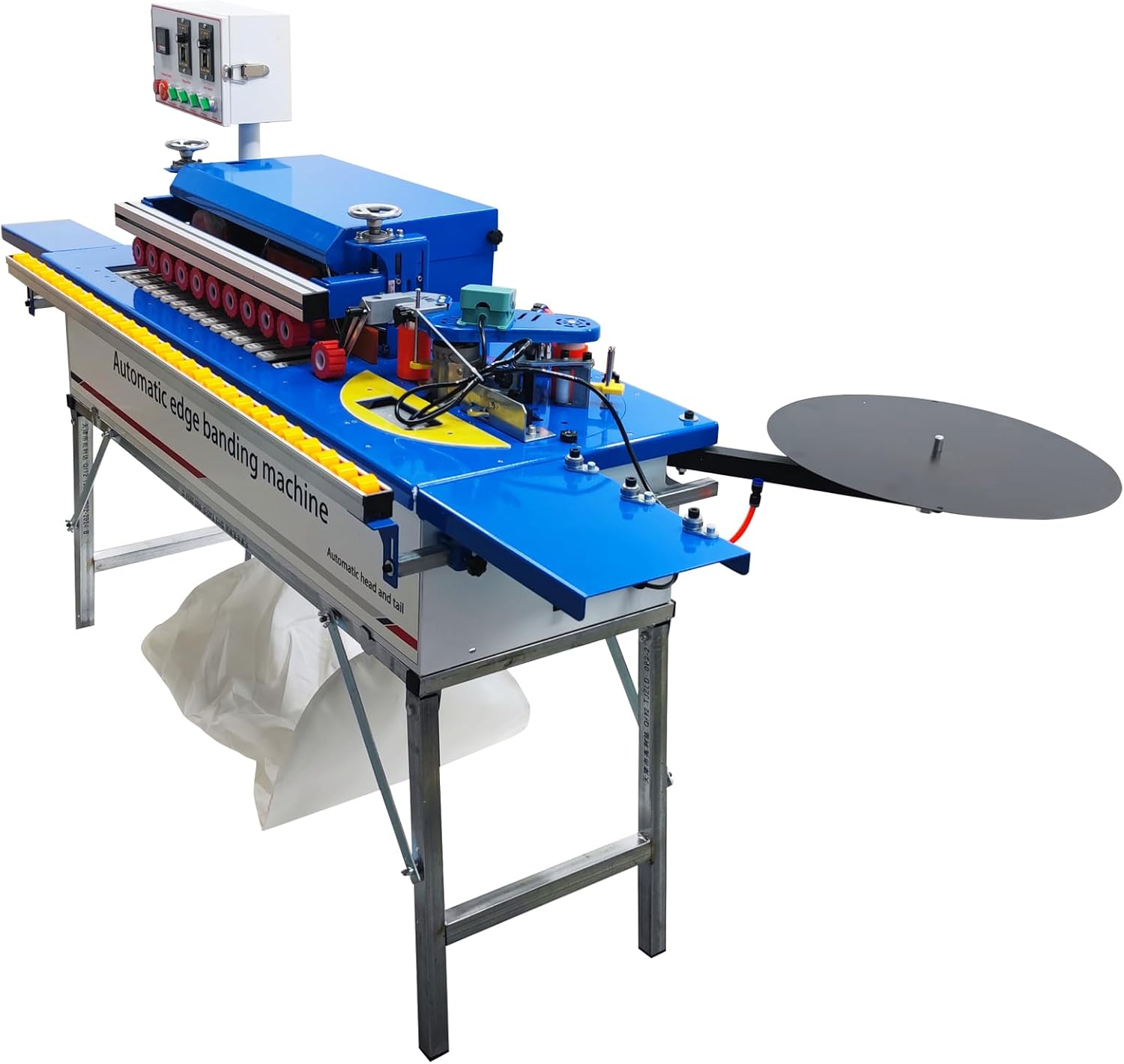

Woodworking Edge Bander Automatic Edge Banding Machine with Dust Suction Double-Side Gluing Multi-function Sealing and Repairing Machine with Automatic Trimming, 110V

Product Parameter:Voltage: 110V Edge speed: 0-6m/min Self-propelled motor power: 60W Conveyor motor power: 25W Polishing motor power: 400W Edge cutting machine power: 800W Edge thickness: 0.8-1.5 millimeters Edge height: 12-40mm Heating time: 5-15min Adhesive volume: 600ml Trimming method: Double-sided trimming Adhesion method: Double-sided adhesive coating Control mode: Intelligent temperature control Disconnection mode: Automatic strip breakingFeatures: 1. First of all, it can be directly applied to the plate straight line and arc irregular border sealing operation, and the portable edge sealing machine is also suitable for a variety of different materials of the edge sealing tape. 2. Multi-functional microcomputer sealing machine through the special structural design, can make the plate with the edge sealing machine tape at the same time, to ensure that the paste is more uniform, more firm, the edge sealing effect is more perfect. The special design of the glue pot increases the volume of the glue pot and greatly reduces the preheating time, which can ensure sufficient melting amount. 3. Manual feeding coupled with manual control and motorized roller pressure mode can accurately and quickly carry out the edge sealing process, each part of the work design is strict and orderly, no degumming overflow phenomenon.Scope of use:Suitable for side sealing: wood veneer, plastic and other furniture edge sealing materials, the rubber surface must be smooth.Suitable for hot melt adhesives: medium and low temperature hot melt adhesives with melting point below 120℃-170℃.

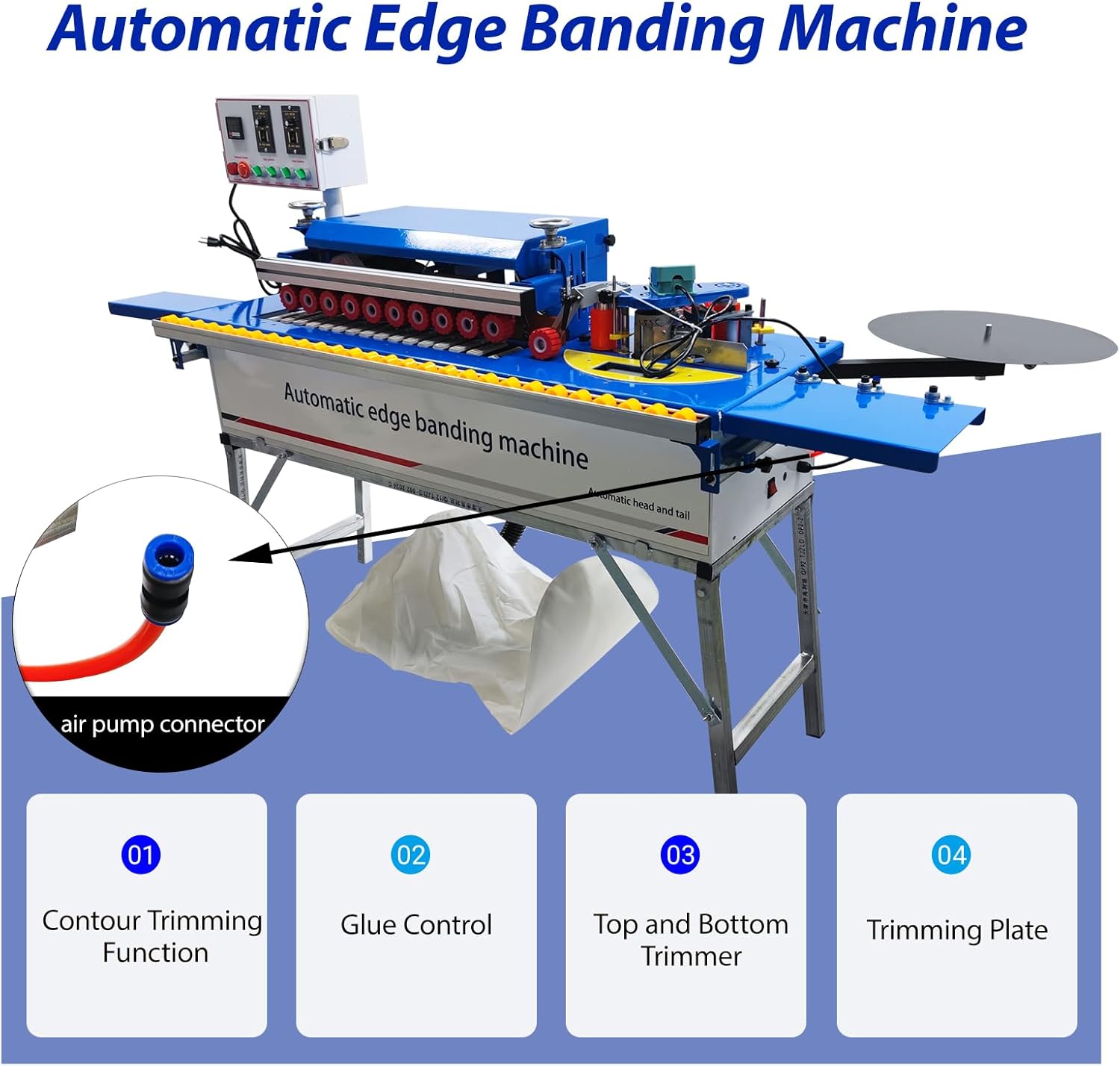

• Multi-function: The woodworking edge banding machine is mainly used for sealing the edge of the board, which fulfills curved and straight edge sealing, double-sided gluing, automatic tape cutting, trim neatly head and tail, automatic plate feeding, upper and lower trimming, double-sided polishing and other functions
• Double-sided Gluing: The automatic edge banding machine features a unique design that enables even double-sided gluing, ensuring the edge banding tape bonds firmly with the panel without bubbles. The finished edge banding shows no glue delamination or overflow, significantly improving the precision of the workmanship
• High Efficiency: The automatic edge bander is equipped with a 600ml large-capacity glue tank, combined with an optimized heating system, allowing a preheating time of just 5-15 minutes. The amount of glue melted at one time can meet the requirements of continuous operation and reduce the frequency of glue replenishment
• Highly Automatic Control: The portable wood sealer integrates an automatic tape cutting, electric roller pressure control and automatic sheet feeding system, reducing manual intervention. A single machine can complete the entire process of gluing, pressing and tape cutting, effectively improving productivity
• Widely Application: The woodworking edge bander has a compact structure, reasonable layout, and beautiful appearance and is suitable for wood veneer, plastic and other furniture edge sealing materials
